- Plug
- Straight
- Nb of contacts
- 7
- Termination
- Crimp
- Wire Size/AWG
- 26 - 22
- Jacket cable outside diameter [mm]
- 3.80 - 10.70 mm
Electrical Configuration
- Contact Termination Low voltage
- PCB - Straight
- R (max)
- 6.1 mOhm
- Insert configuration value
- 1F.307 - 7 Low Voltage
- Insulator
- L: PEEK (UL 94 / V-0/1.5)
- Rated current
- 7 Amps
- Vtest (contact-contact)
- 1450 V (AC), 2050 V (DC)
- Vtest (contact-shell)
- 1450 V (AC), 2050 V (DC)
- Contact Type
- Print (straight)
- Contact Dia.
- 0.7 mm (0.028in)
- Low Voltage
- 7
- Gender
- Standard
Form & Material
- Shell style / Model id
- HE - Fixed receptacle, nut fixing, for printed circuit (back panel mounting)
- Socket / Receptacle
- Fixed Panel Rear Mounted
- Housing material
- Aluminium (nickel plated [SAE AMS QQ N 290], anthracite color) shell and nut, other pieces bronze/brass
- Locking system
- Push-pull
- Keying
- 3 keys (beta=165, gamma=30, plug: male contacts, receptacle: female contacts)
- Variant
- Watertight unmated (connector to device)
- Weight
- 5.29 g
Environment
- Technical domain
- Motorsport, Security and Defence
- Environmental protection (IP rating)
- IP68
- Minimal temperature
- -15°C / +100°C
- Climatical Category
- 15/200/21 (Aluminium shell)
- Humidity (max)
- <=95% [at 60 deg C /140 F]
- Shock Resistance
- 100 g [ 6 ms]
- Vibration
- 15 g [10 Hz - 2000 Hz]
- Pressure
- 5 bars
- Salt Spray Corrosion
- max. 48 hr

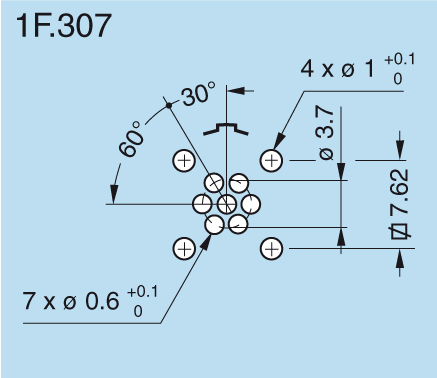

Technical plans
Dimensions
| A | B | e | E | H | L | M | P | S1 | S2 | X | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm. | 17 | 17 | M13x0.75 | 3 | 7.62 | 21.5 | 3.2 | 14.5 | 11.5 | 14 | 17.5 |
| in. | 0.67 | 0.67 | 0.12 | 0.3 | 0.85 | 0.13 | 0.57 | 0.45 | 0.55 | 0.69 |
CAD
F series - Motorsport/Defense
Solutions Selection Guide
F - Rugged Push-Pull
Main Features
- Harsh environments (IP67)
- Push-Pull latching system
- Strong resistance to shocks and vibrations
- Multi-Keying system with color coding
- Light & compact construction
- Stealth Anthracite coating
